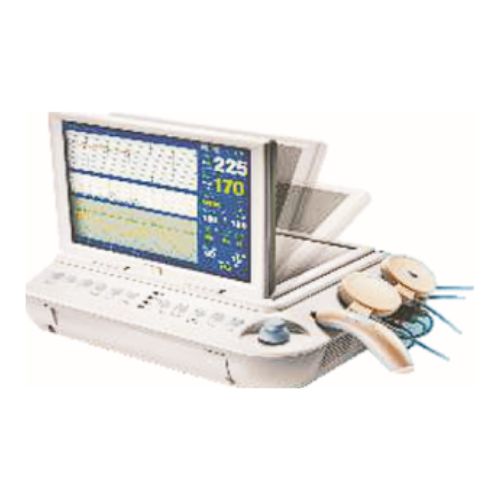

FETAL MONITOR MCF – 21B

Features:

Folded 12.1inch TFT LCD high-brightness screen with a wide viewing angle and large numberics
12 elements/IMHz water proof pulse Doppler transducer for accurate detection (option) providing wider beam area and more homogeneous signal, thus realizing better performance for bedside monitors than conventional transducers
Even marker for easy documentation of events and kick counts On-screen scrolling for viewing stored fetal traces
Twin ultrasound monitoring capability
Configurable audible and flashing fetal heart rate alarms
Twin signal overlap alarm function
Build-in high speed thermal printer, printing width can be set to 110mm, 150mm and 210mm
24-hours memory for fetal traces
Supporting TCP/IP or wireless connection to the central monitoring station
Internal Li-ion battery power or AC power from external power supply

Description

Core Newly advanced A9 main board with Linux OS Support storage of 25000 groups of medical record and 8640 hours trend review Body 12.1-inch color Folded high-brightness TFT LED Humanized probe frame design Build-in handle Sensor 12-Crystal ultrasound transducer Event Marker Signal strength indicator Printer Built-in high-speed thermal printer, 112mm /150mm Support fast printing of stored trend Support external laser printer(option) Central System Wired or wireless connection Optional Support HL7 (Health Level Seven) Alarm Three-level acousto-optic alarm on abnormal FHR FHR signal strength prompt Cross-Channel Verification (CCV) Sensor-off alarm Paper out alarm Support alarm review Linux OS Support operation with mouse and computer keyboard(option) Multi-display mode NIBP self-test mode Medical history search NST Timer Fetal Movement Profile (FMP) Heart rate offset mode Multi-languageAuto CTG analysis report: Advanced Fischer /Fischer / NST / KREBS Online software upgrading by net/USB Exporting CTG data & analysis in PDF format for EMR connectivity by USB memory
